3D printing's application in model production for automobiles, ships, and industrial equipment lies in its ability to quickly and accurately transform complex design drawings into physical models, significantly shortening R&D cycles and reducing costs.
Main Application Scenarios
• Automotive Industry
Design Verification: Rapidly create prototypes of new vehicle exteriors, interiors, and even key components like engines to evaluate design rationality and aerodynamic performance.
Functional Testing: Parts printed using high-strength materials can be directly assembled and functionally tested, such as door hinge life testing.
Customized Accessories: Print unique, customized parts for racing cars or concept cars.
• Marine Industry
Hull Models: Create scaled-scale hull models for tank towing tests to test their resistance and stability.
Complex Structural Parts: Print propellers, complex internal piping, and connectors to verify design feasibility.
Display Models: Create highly accurate, detailed display models of new ship models for customer communications and trade show promotions.
• Industrial Equipment
Prototype Verification: Before manufacturing new equipment on the production line, print small models or core components to check their structure and motion interference.
Tooling and Fixtures: Quickly and custom-print fixtures for specific production tasks to improve production efficiency and precision.
Spare Parts Manufacturing: For hard-to-source spare parts for older equipment, 3D scanning and printing can be used to quickly replicate them, solving maintenance challenges.

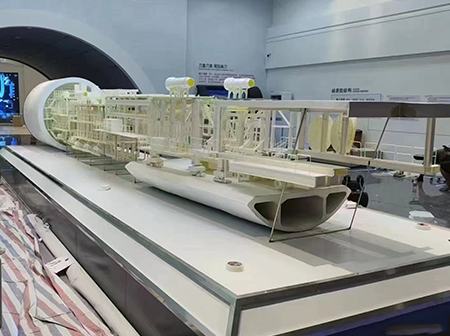

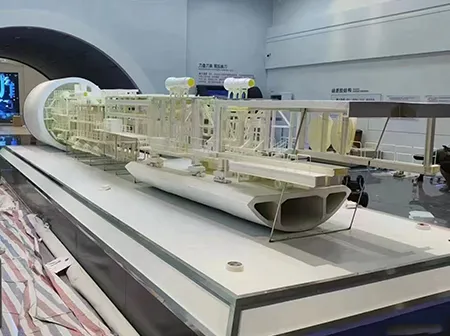

Mechanical Equipment Assembly 3D Printing Model: User Feedback, Common Issues, Product Highlights, and Troubleshooting
The advent of 3D printing technology has revolutionized the way mechanical equipment assembly models are designed and prototyped. By offering a high level of precision and flexibility, 3D printing allows engineers and manufacturers to quickly create physical representations of mechanical assemblies—from gears to motors, bearings, and hydraulic systems—for design validation, functional testing, and performance optimization.
This article explores the key aspects of Mechanical equipment assembly 3D printing models, covering user feedback, common issues encountered during the process, the product highlights, and an analysis of common failure causes. By understanding these areas, businesses and engineers can leverage 3D printing more effectively, ensuring a smoother prototyping and manufacturing process.
Feedback from users is crucial in assessing the effectiveness and performance of 3D printed mechanical equipment models. Users, including engineers, designers, and manufacturers, have shared various experiences regarding the accuracy, efficiency, and cost-effectiveness of these models in prototyping and testing mechanical assemblies.
Many users have reported significant improvements in the prototyping process due to the capabilities of 3D printing:
Rapid prototyping: Users have found that 3D printed models significantly reduce the lead time for producing physical prototypes. This allows teams to iterate more quickly on designs and refine mechanical assemblies with minimal delays.
High accuracy: One key aspect praised by users is the precision of the models. Whether for gears, motors, or hydraulic systems, the accuracy of 3D printed mechanical assemblies enables better functional testing, ensuring that the parts fit together as designed.
Cost savings: A number of users reported that 3D printing has helped reduce costs by minimizing material waste compared to traditional manufacturing processes like CNC machining or casting.
Customization: Customizing parts is much easier and faster with 3D printing. Users can modify designs based on specific needs or test different variations without incurring substantial costs.
Despite the advantages, users have also faced some challenges with 3D printed mechanical equipment models:
Material limitations: While 3D printing offers a variety of materials, not all are suitable for all applications. For instance, materials used in rapid prototyping might not always offer the strength or durability required for final functional parts, which limits their use in certain heavy-duty equipment models.
Post-processing requirements: After printing, models often require post-processing such as sanding, polishing, or curing, which can add extra time and cost to the project.
Size limitations: Large mechanical assemblies may require multiple parts that need to be assembled together, which can introduce alignment or fitment challenges.
While 3D printing is a powerful tool, it is not without its challenges. Some common issues faced by users when printing mechanical equipment models include:
Warping is one of the most common issues in 3D printing. When printed models cool, they may contract unevenly, leading to warping, particularly in larger mechanical parts.
Cause: Uneven cooling rates, especially in materials like ABS or Nylon, are the primary causes of warping.
Solution: Using a heated bed or enclosed print chamber can help reduce temperature fluctuations and prevent warping. Additionally, 3D printers with auto-bed leveling can ensure even printing surfaces.
Misalignment of layers during the printing process can lead to dimensional inaccuracies in the final model, particularly in mechanical assemblies that require precise tolerances.
Cause: This can happen due to printer miscalibration or issues with filament extrusion.
Solution: Regular printer calibration and ensuring the filament is of high quality can reduce the risk of layer misalignment. Additionally, employing higher resolution settings on the printer can help mitigate this issue.
In some cases, layers may fail to properly adhere to each other, causing weak points or cracks in the model.
Cause: Incorrect temperature settings or low-quality filament can lead to weak adhesion between layers.
Solution: Ensure the correct extruder temperature and bed temperature are used for the material, and use high-quality filaments for better adhesion.
3D printing mechanical equipment assembly models offer several advantages that make them highly suitable for modern prototyping and design needs.
One of the standout features of 3D printed mechanical models is their ability to produce highly accurate and detailed parts. This level of precision allows for functional testing of assemblies to ensure that all parts fit together as intended. Whether you're working on gears, motors, or hydraulic systems, 3D printing can replicate even the most complex mechanical features.
A wide range of materials are available for printing mechanical equipment models, including plastics, metals, and composites. This allows engineers to choose materials that best match the performance requirements of their mechanical models. For instance:
ABS or PLA are commonly used for rapid prototyping.
Metal alloys like stainless steel and titanium can be used for more robust, industrial-grade models.
Compared to traditional manufacturing methods like CNC machining or casting, 3D printing is more cost-effective, especially for small production runs or custom parts. The ability to create complex assembly models without requiring molds or tooling saves both time and money.
3D printing allows for faster design iterations and shorter lead times for creating physical models. This is especially valuable in industries where time-to-market is a critical factor. Engineers can quickly modify designs based on testing and feedback, reducing the overall development time.
Even with advanced technology, there are certain challenges in 3D printing mechanical equipment models. Understanding and addressing the common failure causes can significantly improve the printing process.
If your prints are not coming out as expected, it could be due to a number of factors.
Cause: Misalignment in the printer bed, low-quality filament, or improper temperature settings can all contribute to inconsistent print quality.
Solution: Check the printer’s calibration, especially the bed leveling and extruder settings. Use high-quality filaments and ensure the printing environment is free from dust or drafts that may affect the print.
Filament jamming is a common issue when the printer's extruder becomes clogged, causing the filament to stop extruding properly.
Cause: Overuse of a certain type of filament, incorrect nozzle temperature, or filament degradation can lead to blockages.
Solution: Clean the extruder regularly and use the recommended nozzle temperature for the specific filament. If necessary, switch to a higher-quality filament to prevent clogs.
When printing mechanical models that feature overhangs or complex geometries, unsupported sections of the model can collapse or deform during printing.
Cause: Lack of support structures or incorrect design of overhangs can cause these issues.
Solution: Use support structures or design modifications to ensure the model is stable during printing. Many 3D printers allow for automatic generation of support materials that can be removed after printing.
3D printing models of mechanical equipment assemblies offer a transformative way for engineers and manufacturers to create precise, cost-effective prototypes and models. By understanding the user feedback, addressing common issues, focusing on product highlights, and troubleshooting common problems, companies can maximize the potential of 3D printing to enhance product design, reduce costs, and accelerate time-to-market.
The ability to prototype, test, and iterate mechanical assemblies efficiently through 3D printing is a powerful tool in modern manufacturing, providing a valuable solution for everything from small components to large assembly systems. By mastering the processes and techniques outlined in this article, users can unlock the full potential of 3D printing mechanical models to drive innovation and improve product quality.
