3D printing's application in model production for automobiles, ships, and industrial equipment lies in its ability to quickly and accurately transform complex design drawings into physical models, significantly shortening R&D cycles and reducing costs.
Main Application Scenarios
• Automotive Industry

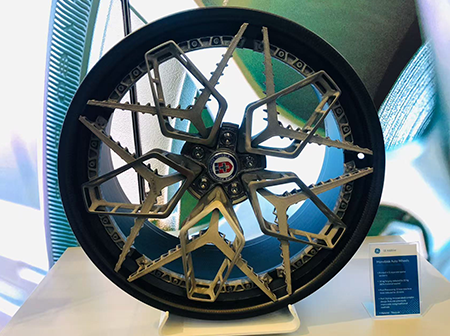

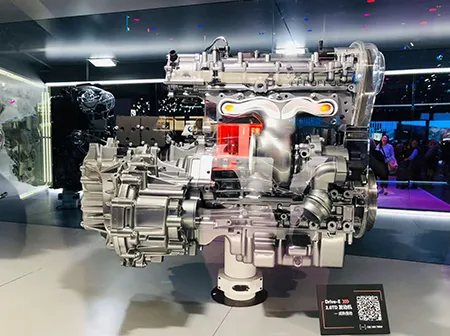

Design Verification: Rapidly create prototypes of new vehicle exteriors, interiors, and even key components like engines to evaluate design rationality and aerodynamic performance.
Functional Testing: Parts printed using high-strength materials can be directly assembled and functionally tested, such as door hinge life testing.
Customized Accessories: Print unique, customized parts for racing cars or concept cars.
• Marine Industry
Hull Models: Create scaled-scale hull models for tank towing tests to test their resistance and stability.
Complex Structural Parts: Print propellers, complex internal piping, and connectors to verify design feasibility.
Display Models: Create highly accurate, detailed display models of new ship models for customer communications and trade show promotions.
• Industrial Equipment
Prototype Verification: Before manufacturing new equipment on the production line, print small models or core components to check their structure and motion interference.
Tooling and Fixtures: Quickly and custom-print fixtures for specific production tasks to improve production efficiency and precision.
Spare Parts Manufacturing: For hard-to-source spare parts for older equipment, 3D scanning and printing can be used to quickly replicate them, solving maintenance challenges.
Introduction
The automotive industry is increasingly adopting 3D printing technology to streamline production processes, reduce costs, and improve part design. 3D printing allows for the creation of complex automotive parts with high precision, enabling customization and rapid prototyping. This guide provides a detailed overview of the safety protocols, operation tips, maintenance methods, and material specifications associated with 3D printing of automotive parts. Designed to meet SEO best practices, this content will help businesses and professionals in the automotive industry better understand the benefits and technicalities of 3D printing technology.
Safety Operating Procedures
Personal Protective Equipment (PPE)
Machine Safety
Work Area Safety
Operation Tips for 3D Printing Automotive Parts
Printer Calibration
Material Handling
Print Settings
Maintenance Methods
Routine Maintenance
Troubleshooting Common Issues
Cleaning and Storage
Materials Used in 3D Printing of Automotive Parts
Types of Materials
Material Selection Guide
Advantages of Each Material
Personal Protective Equipment (PPE)
Working with 3D printers, especially in industrial settings, requires adequate PPE to protect workers from potential hazards such as fumes, high temperatures, and sharp objects. Essential PPE includes:
Gloves: To handle materials and equipment safely.
Safety Goggles: To protect eyes from debris and intense light from the printing process.
Respirators: Especially when working with materials that emit fumes or particles.
Ear Protection: To shield against noise from large-scale 3D printing operations.
Machine Safety
Before operating 3D printers for automotive parts, ensure the following safety measures:
Check for proper ventilation: 3D printing, especially with materials like ABS, can produce fumes. Proper ventilation or exhaust systems must be in place.
Emergency Stop Function: Ensure all printers have an easily accessible emergency stop button.
Temperature Monitoring: Many 3D printing processes, such as FDM (Fused Deposition Modeling) or SLS (Selective Laser Sintering), involve high temperatures. Always monitor the temperature to avoid overheating and potential fires.
Work Area Safety
Set up a safe work environment by:
Keeping workspaces well-organized and free of unnecessary materials.
Ensuring proper electrical grounding to prevent static discharge.
Using fireproof mats under machines to reduce fire risks.
Printer Calibration
Accurate 3D printing requires the printer to be properly calibrated. Regular calibration ensures high-quality prints and minimizes the chances of errors. Key areas to calibrate include:
Print Bed Leveling: Ensure the print bed is level for uniform layer deposition.
Extruder Calibration: Adjust the extruder to ensure the correct material flow and avoid clogging.
Temperature Settings: Ensure the nozzle and print bed temperatures are suitable for the material being used.
Material Handling
Materials used in automotive 3D printing come in various forms, such as filaments, powders, or resins. Proper handling is crucial for optimal printing results:
Filament Storage: Store filament in a dry, cool place to prevent moisture absorption, which can lead to print defects.
Powder Handling: When working with SLS technology, carefully handle powders, as they can be hazardous if inhaled. Use a sealed environment for powder storage and always wear appropriate PPE.
Print Settings
The settings of your 3D printer directly impact the quality of the final automotive part. Key settings to optimize include:
| Setting | Recommendation |
|---|---|
| Layer Height | 0.1 to 0.3 mm for fine details |
| Print Speed | 30-50 mm/s for optimal balance between speed and accuracy |
| Infill Density | 20-40% for strength without compromising weight |
| Temperature | 210-250°C (depending on material type) |
Choosing the correct print settings ensures that parts are produced with the desired strength and finish.
Routine Maintenance
Regular maintenance of your 3D printer extends its lifespan and ensures consistent print quality. Key maintenance tasks include:
Cleaning the Nozzle: Periodically clean the extruder nozzle to prevent material buildup.
Lubricating Moving Parts: Regularly lubricate the rails and motors to maintain smooth operation.
Inspecting Electrical Connections: Check cables and connectors for wear and tear to avoid electrical faults.
Troubleshooting Common Issues
Despite the sophistication of modern 3D printers, issues may still arise. Common problems include:
Clogged Nozzle: Clean or replace the nozzle if material flow is inconsistent.
Warping: Prevent this by ensuring proper bed adhesion or using a heated print bed.
Layer Shifting: This often occurs due to loose belts or improper calibration. Tighten belts and recheck calibration settings.
Cleaning and Storage
Clean the printer after each use to prevent material residues from interfering with future prints. Additionally, store unused filament in airtight containers to keep moisture out and avoid degradation.
Types of Materials
3D printing in the automotive industry utilizes several materials, each offering unique properties. The most commonly used materials include:
PLA (Polylactic Acid): Ideal for prototyping and lightweight parts. Not suitable for high-stress automotive components.
ABS (Acrylonitrile Butadiene Styrene): Known for durability and impact resistance, ABS is commonly used in functional automotive parts.
Nylon: Offers high strength, flexibility, and wear resistance, making it ideal for automotive applications such as gears and hinges.
Metal Alloys (Stainless Steel, Titanium): Used for high-performance automotive parts, metal 3D printing provides strength and heat resistance.
Carbon Fiber Reinforced Filaments: These filaments are mixed with carbon fibers to enhance strength, ideal for producing lightweight yet durable automotive parts.
Material Selection Guide
Selecting the right material is crucial for the functionality and performance of the automotive parts being printed. Here's a guide based on typical automotive requirements:
| Requirement | Recommended Material |
|---|---|
| Strength & Durability | ABS, Nylon, Carbon Fiber Reinforced Filaments |
| Lightweight Components | PLA, Carbon Fiber Reinforced PLA |
| Heat Resistance | ABS, Metal Alloys (e.g., Titanium, Stainless Steel) |
| Flexibility | Nylon, TPU (Thermoplastic Polyurethane) |
Advantages of Each Material
PLA: Biodegradable, easy to print, cost-effective.
ABS: Strong, heat-resistant, suitable for high-stress parts.
Nylon: Excellent for functional parts requiring strength and flexibility.
Metal Alloys: Strong and heat-resistant, suitable for performance-critical applications.
Carbon Fiber Filaments: Lightweight, strong, and stiff, ideal for high-performance automotive parts.
3D printing is transforming the automotive industry by enabling faster production, cost savings, and the creation of complex, custom parts. Adopting the right safety measures, operational tips, maintenance practices, and material selection ensures the success of your 3D printing processes for automotive parts. Whether for prototyping or final production, 3D printing offers unmatched versatility and precision, positioning it as a key technology in the future of automotive manufacturing.
By following these guidelines, automotive manufacturers and engineers can enhance their 3D printing operations, achieving high-quality results that meet the demands of modern automotive design.
